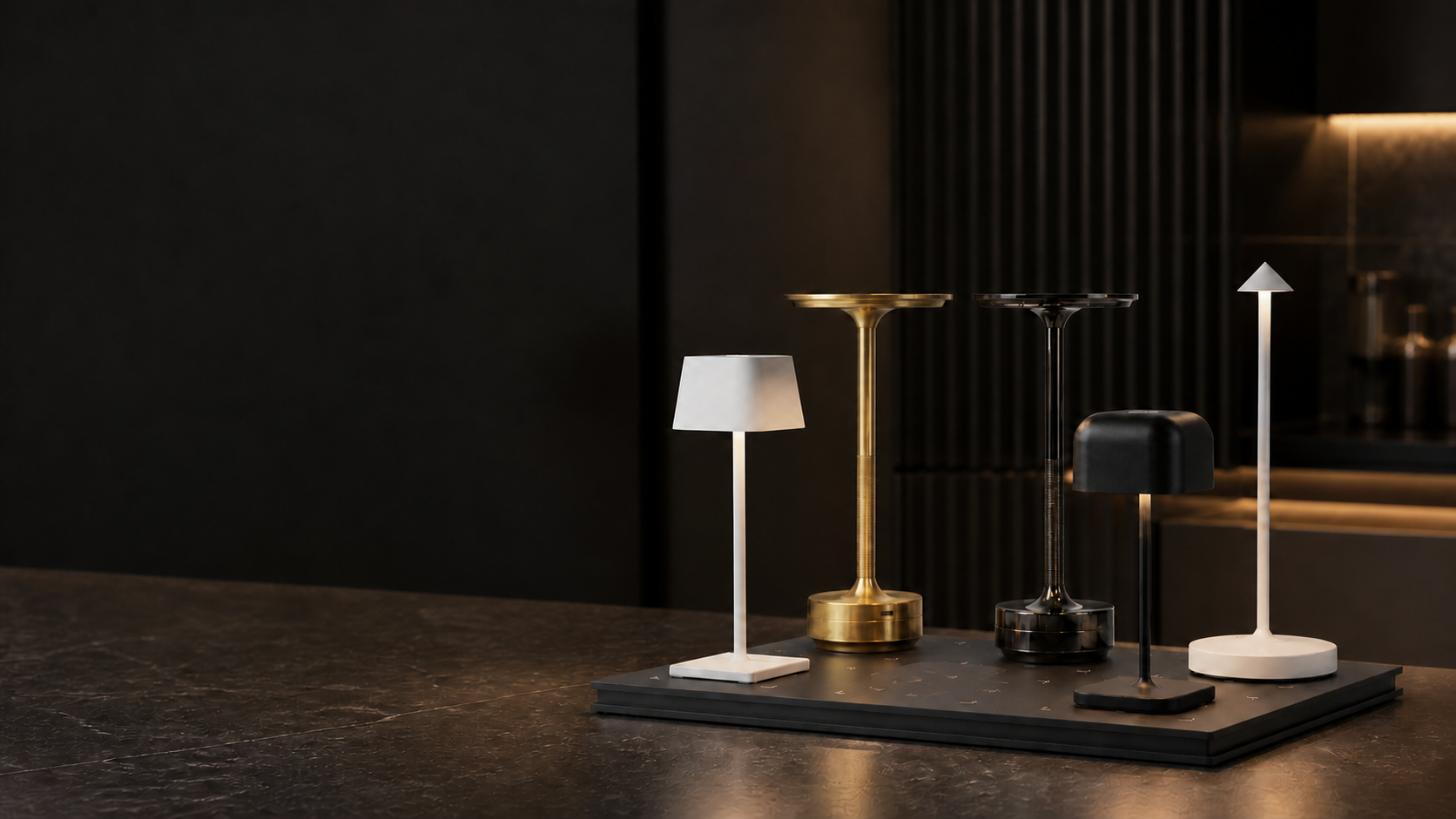

Centralized charging station with compatible cordless table lamps for restaurant and hotel operations

Hospitality Charging Solutions

Centralized Lamp Charging

A configurable charging system for compatible Jianbian Lighting cordless table lamps. Choose 1, 4, 6 or 8 charging positions for restaurant, hotel and hospitality operations.

Request a charging plan
1 / 4 / 6 / 8 Positions Qi + Pin Contact Restaurant / Hotel / Hospitality

Jianbian Lighting

Cordless Table Lamp Charging Solutions

Jianbian Lighting Technology (zhongshan) Co., Ltd. provides centralized charging solutions for compatible cordless table lamps used in restaurant, hotel and hospitality projects. Qi wireless charging and pin-contact configurations are available according to the selected lamp model and operational requirements.

Configurable Capacity

Match the station to your operation

Select a charging capacity to preview the recommended commercial application.

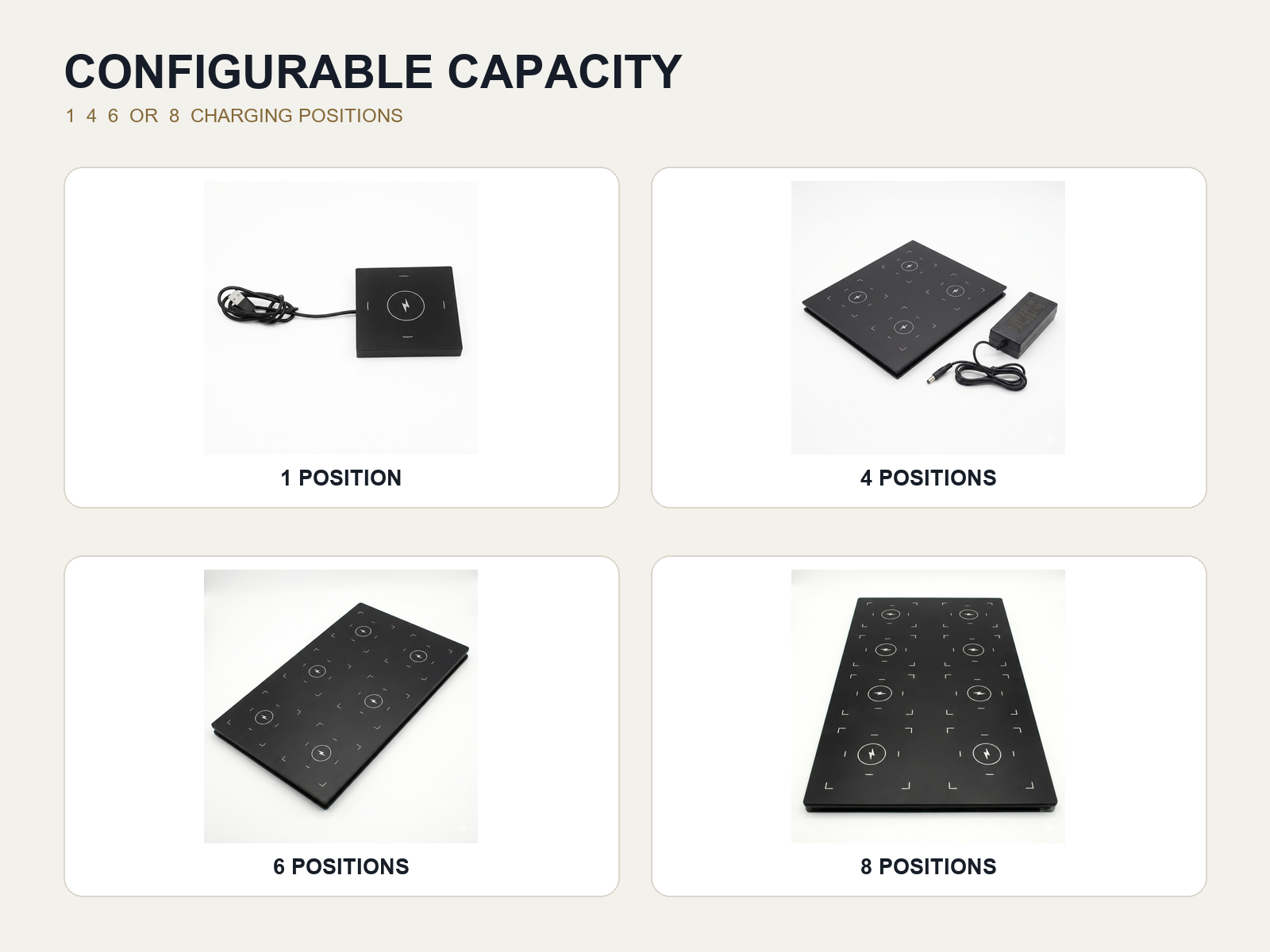

One four six and eight position charging-base options for compatible cordless table lamps
8

8-Position Base

Centralized charging for larger cordless lamp deployments in restaurant and hotel operations.

Two Charging Options

Choose the method for the selected lamp

Confirm lamp compatibility before selecting the charging base.

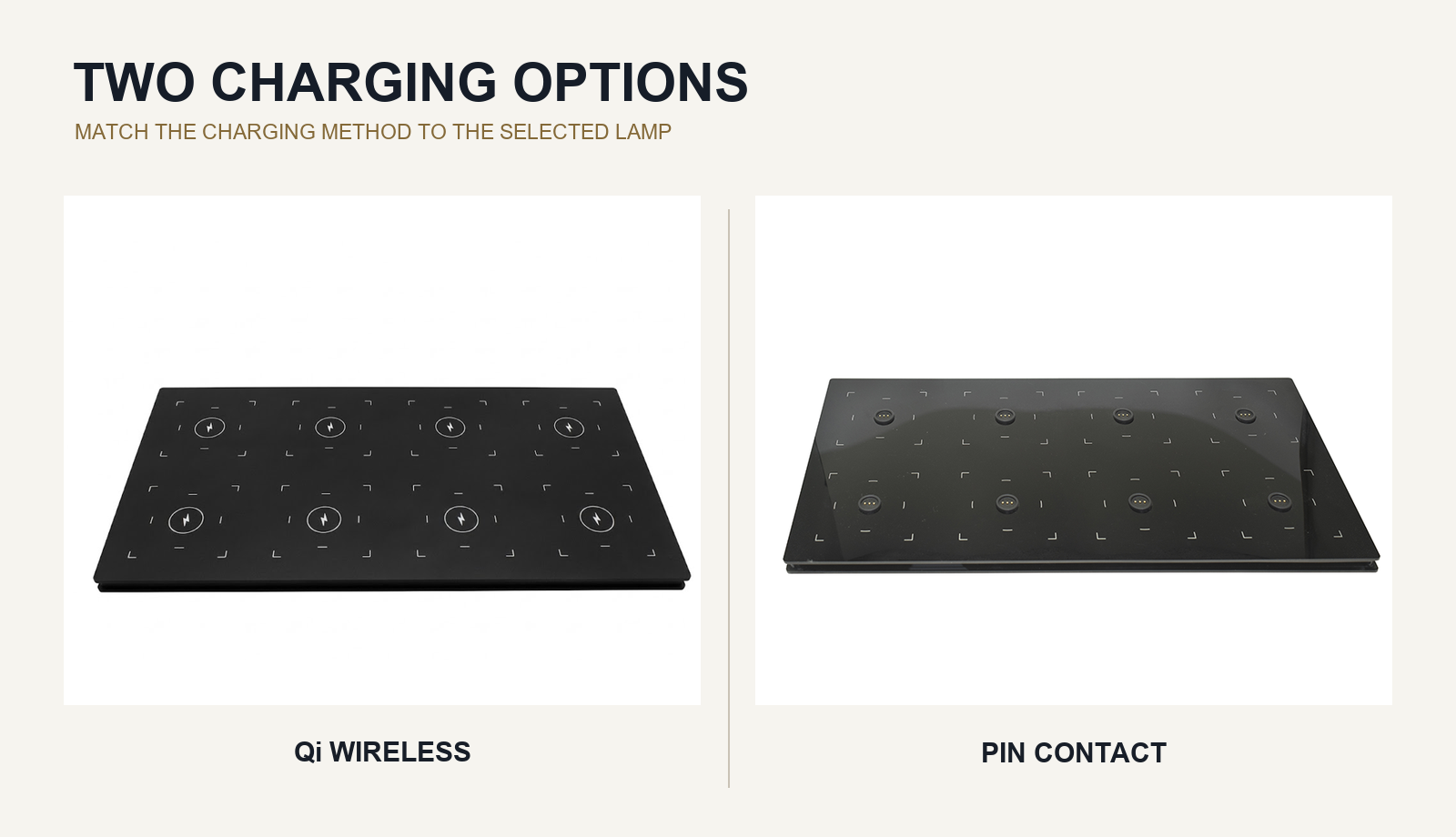

Comparison of an eight-position Qi wireless charging base and an eight-position pin-contact charging base

Qi Wireless

Place and charge

Place a compatible lamp on the marked charging zone for cable-free charging. The Qi version also supports compatible Qi-enabled mobile devices within the verified output range.

  • 5W / 7.5W / 10W automatic output recognition
  • Dynamic power balancing
  • OCP / OVP / OTP / FOD protection

Daily Workflow

From closing time to next service

01

Place

Position each compatible lamp on its marked charging zone.

02

Detect

Automatic recognition identifies the charging requirement.

03

Charge

Dynamic power balancing manages active charging positions.

04

Deploy

Return charged lamps to restaurant or hotel service areas.

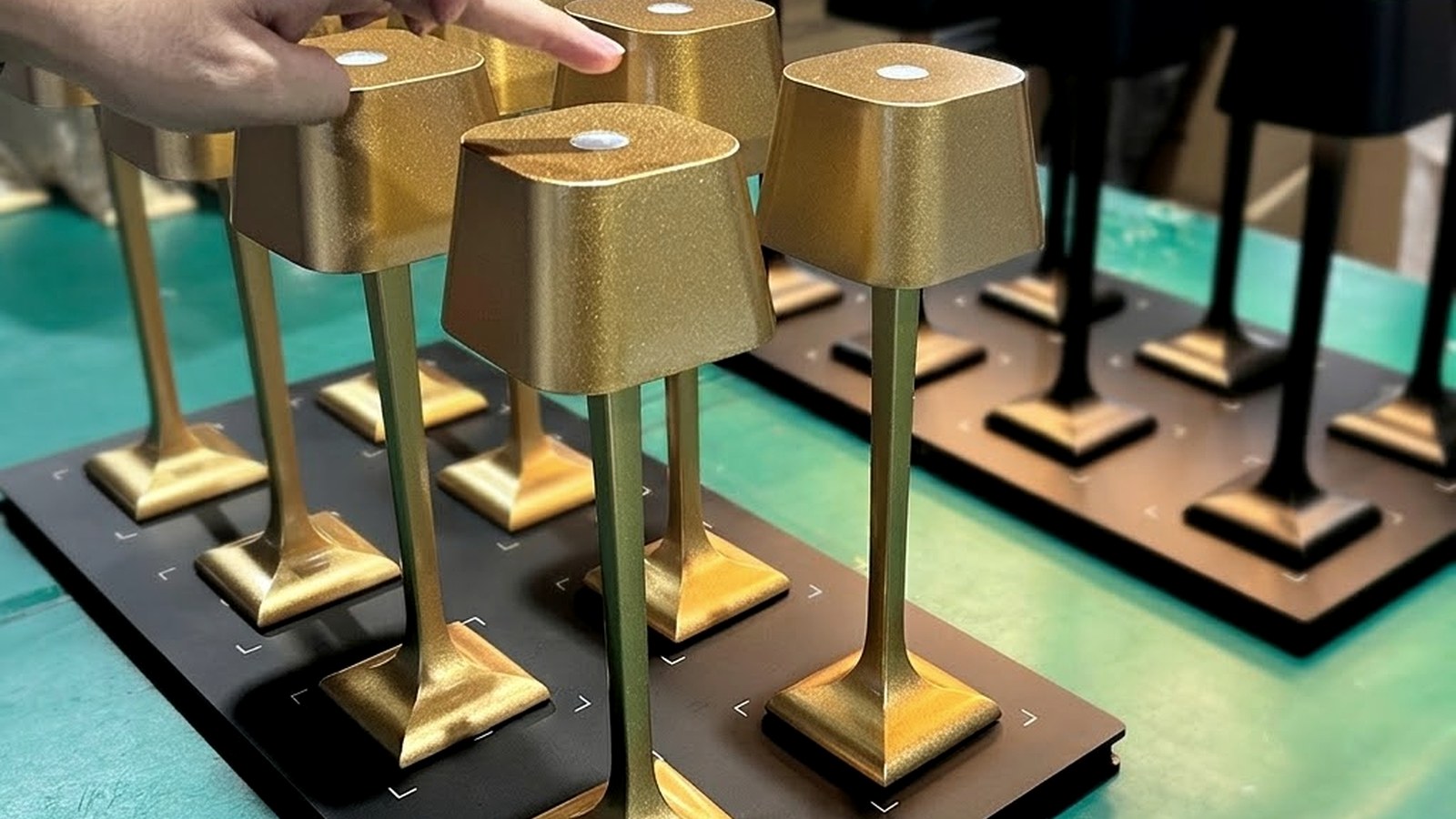

Multiple restaurant cordless table lamps arranged on centralized charging bases

Commercial Power Management

Verified system specifications

Open each group to review the confirmed Qi charging data.

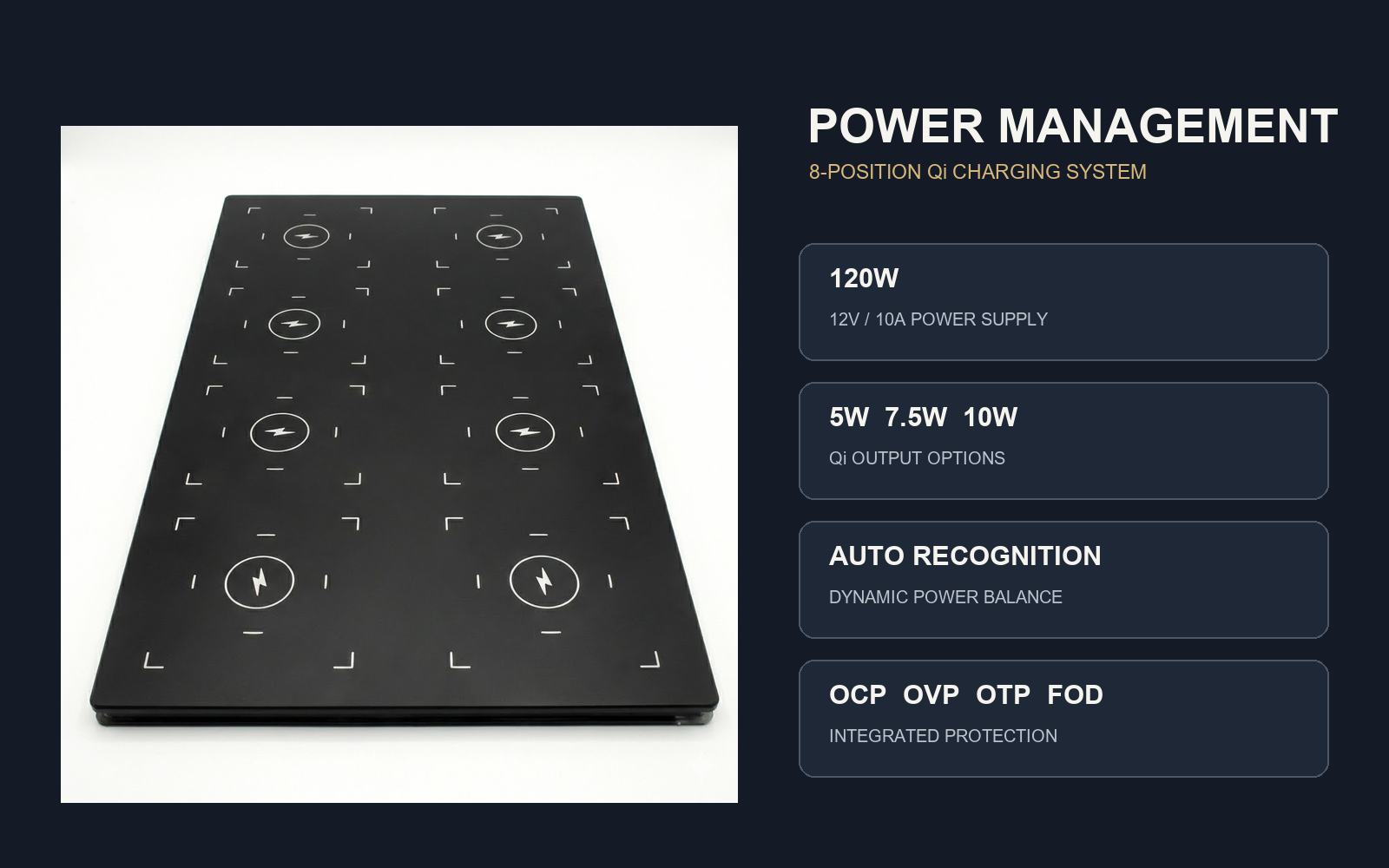

Eight-position Qi charging station with 120W power supply automatic recognition and integrated protection
8-Position Power Supply
Power Supply12V / 10A
Rated Power120W
TX Output per Position5V / 1A or 9V / 1.2A
Wireless Output5W / 7.5W / 10W
Lamp Charging
Lamp Receiver5V / 1A Max.
Charging Current600mA
Battery Capacity5200mAh
Full Charging Time8-9 Hours
Wireless Charging Performance
Sensing Distance<=7 mm
Working Frequency100-200 kHz
Charging Efficiency70-80%
StandardWPC V1.1 / Qi-Compatible
Power Management and Protection
Automatic device recognition and dynamic power balancing manage the output across active charging positions. Protection functions include overcurrent, overvoltage, overtemperature and foreign-object detection.

Product Highlights

Built around hospitality operations

Centralized Multi-Lamp Charging

One station manages multiple compatible cordless table lamps, reducing individual charging cables in restaurant and hotel back-of-house operations.

1 / 4 / 6 / 8 Positions

Select a capacity for sample evaluation, smaller service zones, restaurant deployments or larger hospitality projects.

Qi and Pin-Contact Options

Two charging methods support confirmed compatible lamp models and different operating requirements.

Automatic Power Management

Automatic device recognition and dynamic power balancing manage active positions during centralized charging.

Integrated Protection

Overcurrent, overvoltage, overtemperature and FOD support controlled charging in commercial environments.

OEM and ODM Support

Charging configurations and confirmed customization requirements can be discussed for restaurant and hotel projects.

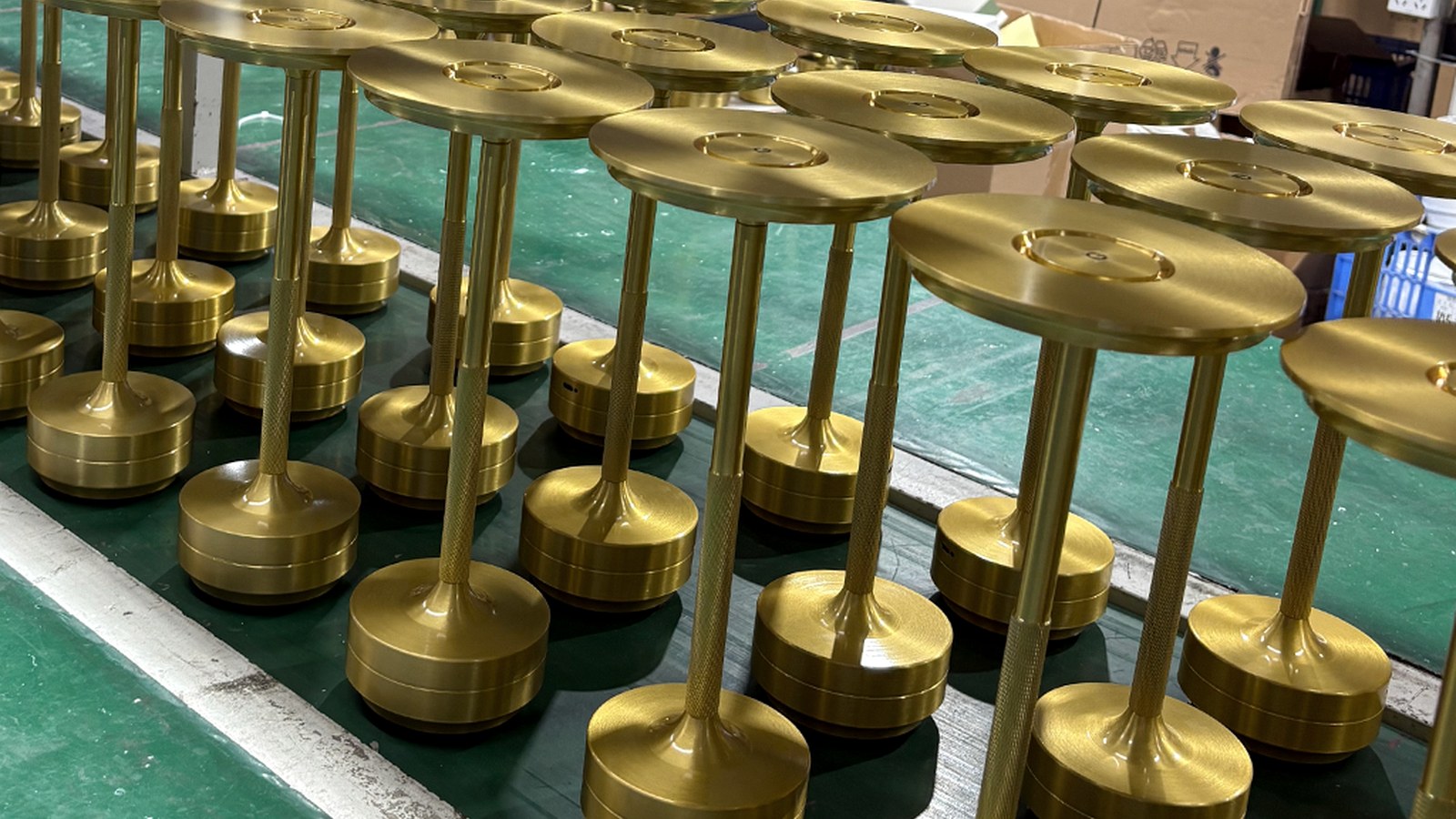

Factory production of cordless table lamps for commercial restaurant and hotel projects

Project Configuration Support

From selected lamp to charging plan

Jianbian Lighting supports OEM, ODM, logo, packaging, surface-treatment and product-development services for qualified projects. The charging configuration is confirmed according to the selected lamp model and operational requirements.

  • OEM
  • ODM
  • Logo
  • Packaging
  • Surface Treatment
  • Product Development

FAQ

Buyer questions

What is a centralized cordless table lamp charging station?
It is a charging base that supports multiple compatible cordless table lamps from one station, helping restaurant and hotel teams organize daily lamp charging.
Which charging capacities are available?
Charging bases are available with 1, 4, 6 or 8 positions.
Are both Qi and pin-contact charging available?
Yes. Qi wireless charging and pin-contact charging are available according to the selected compatible lamp model.
How long does it take to charge a 5200mAh lamp battery?
The confirmed charging time is approximately 8-9 hours with a 600mA lamp charging current under the specified configuration.
Can the Qi version charge mobile phones?
Yes. It supports compatible Qi-enabled mobile devices at 5W, 7.5W or 10W within the verified output range.
What information should buyers provide before ordering?
Please provide the selected lamp model, required lamp quantity, preferred Qi or pin-contact method, destination market and confirmed customization requirements.

Build your charging configuration

Tell us your selected lamp model, required charging quantity and preferred charging method. Our team will confirm the appropriate configuration for your project.

Request a charging plan
